Envolite
Precision Light.Powerful Insights.Engineered for Better Outcomes.
Powered by Patented EPMD Technology
From standard white-light illumination to fluorescence excitation, infrared/NIR illumination, and custom multispectral light modules for advanced imaging modalities developed under EPMD's flagship BioMIS™ program.
OptiCore-MX scales across five platform families
Common optics, modular engagement, and precision spectral control let hospitals and OEM partners specify the capability tier the list needs without changing the underlying architecture.

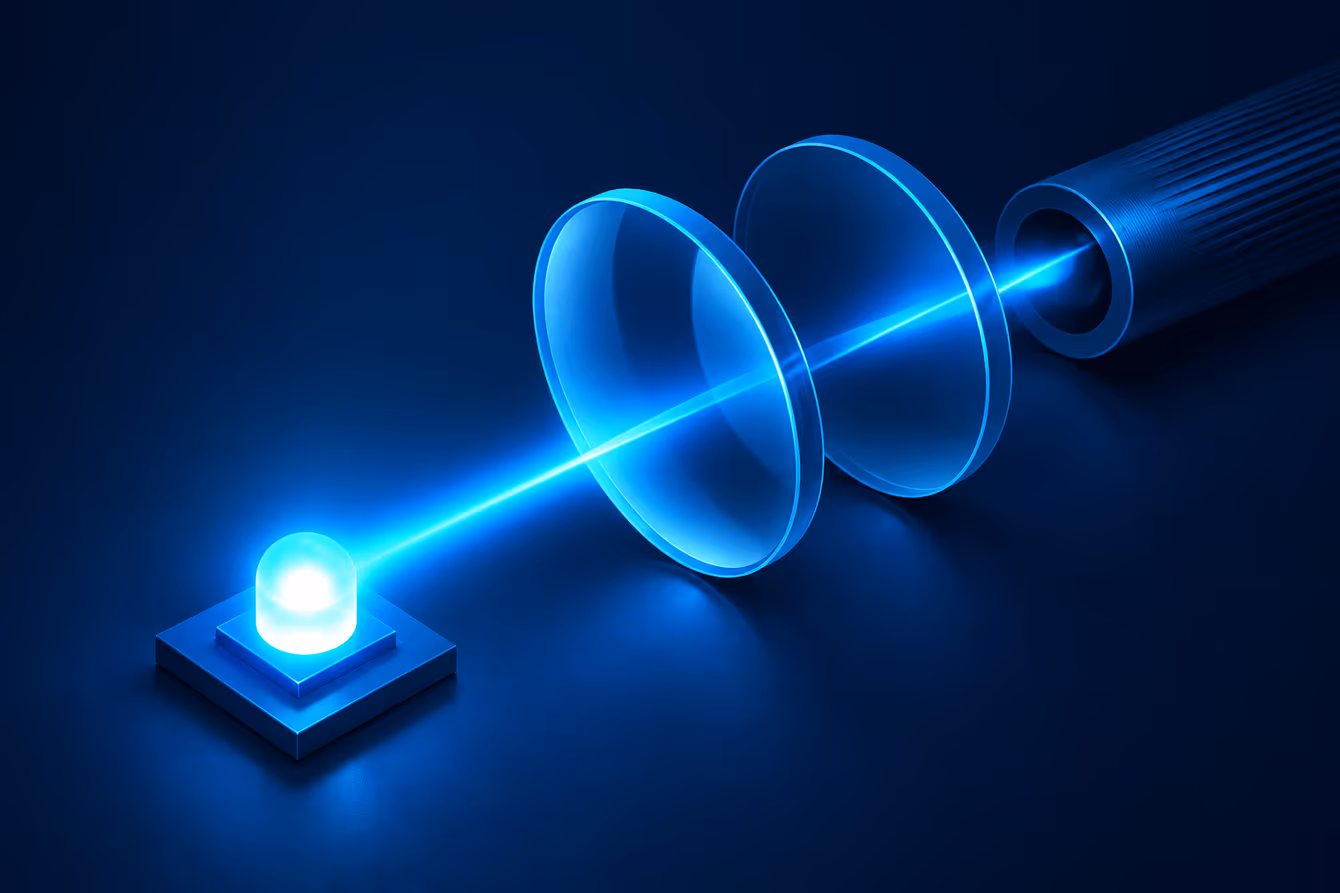

One optical architecture
A common high-efficiency optical engine across SCLA, TCLA, IRLA, IRLB, and IRLC.
Scalable performance
From standard white light through SpectraSure colour fidelity to ICG and multispectral imaging.
Precision spectral control
Engineered LEDs deliver narrow bandwidth with high radiance for fluorescence and multispectral work.
Modular and OEM ready
Flexible engagement models from optical engine through complete illumination system.
Future-ready innovation
Built for continuous advancement and emerging fluorescence and multispectral applications.
Console intelligence for every endoscopic list
7" intuitive touchscreen
Capacitive touchscreen for precise control, parameter adjustment, and real-time status visualization.
Cable detection interlock
Sensors activate the light source only when the fiber optic cable is securely connected.
Lightweight and portable
High-strength lightweight structure keeps total weight under 4.8 kg for easy portability.
Quiet operation
OptiCore-MX optical and thermal efficiency enables whisper-quiet operation below 45 dB.
Low heat emission
Optical coupling keeps the illuminated area cooler to extend fiber cable lifespan.
Smart control memory
One-touch save and recall restores last-used settings and stores preferred configurations.
Future ready
Platform architecture supports optional SpectraSure, synchronisation, and spectral sequencing packages.
Reliable excellence
50,000 h LED service life with fast turn-on, minimal heat generation, and consistent luminous output.

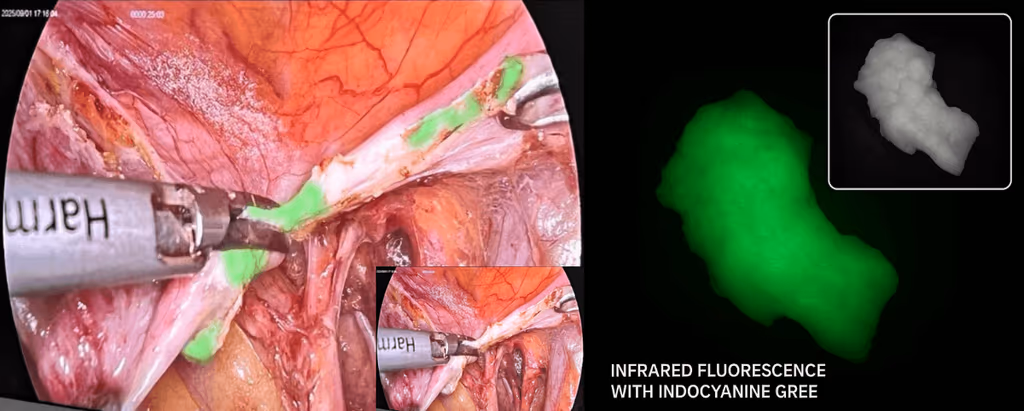

ICG fluorescence imaging with IRLA
ICG dye injection, NIR excitation at 780-805 nm, and fluorescence detection combine in one dual-mode port for perfusion mapping, sentinel lymph node identification, tumour margin assessment, biliary and ureter identification, and tissue viability assessment.
IRLA delivers high excitation efficiency with less than 10 W IR power, an ultra-narrow excitation band for high signal-to-noise ratio, and LED-based reliability without laser complexity.
Precision spectral filtering is engineered into the optical path to maximize separation between excitation and fluorescence signals, suppressing spectral leakage and minimizing false-positive fluorescence detection.
Multispectral illumination for perfusion and oxygenation mapping
Purpose-built multispectral illumination provides complementary spectral contrast for tissue perfusion and oxygenation assessment, supporting oncology guidance, tissue assessment, and quantitative imaging applications.
IRLC adds a dedicated reference channel for cross-channel signal validation, helping identify motion-related or signal inconsistencies and improving the robustness of quantitative measurements in dynamic surgical environments.
IRLB and IRLC are custom multispectral illumination modules developed for specific customer requirements. Contact us to discuss available configurations and the scope of customisation.
Configurations
View all configurations

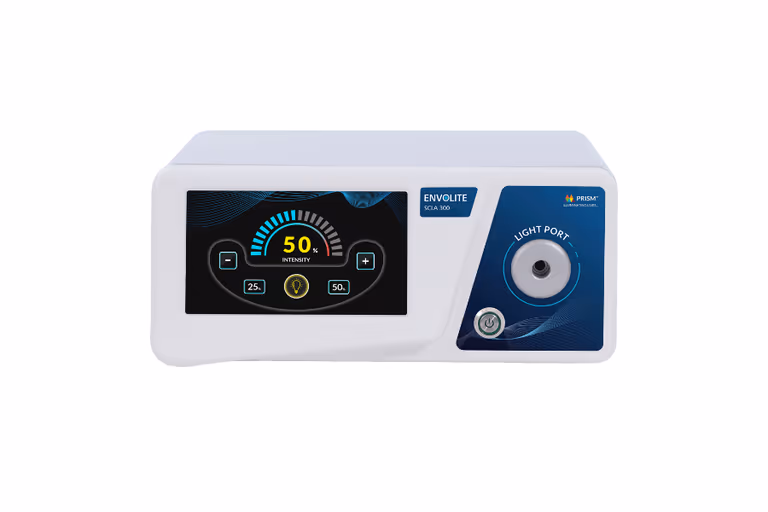

SCLA
White light imaging on the OptiCore-MX platform.
- Display7" capacitive touchscreen
- Primary capabilityWhite light imaging
- White light output2800 lm
- SpectraSure-

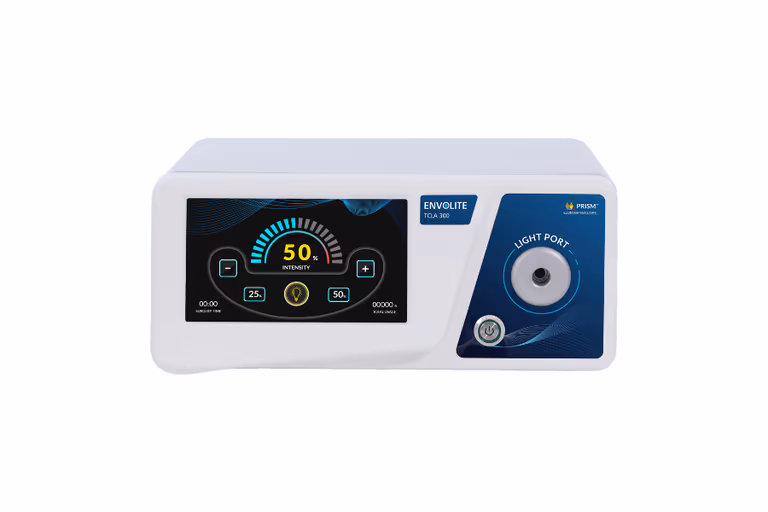

TCLA
White light with SpectraSure colour fidelity as standard.
- Display7" capacitive touchscreen
- Primary capabilityWhite light imaging + SpectraSure™
- White light output2800 lm
- SpectraSureIncluded

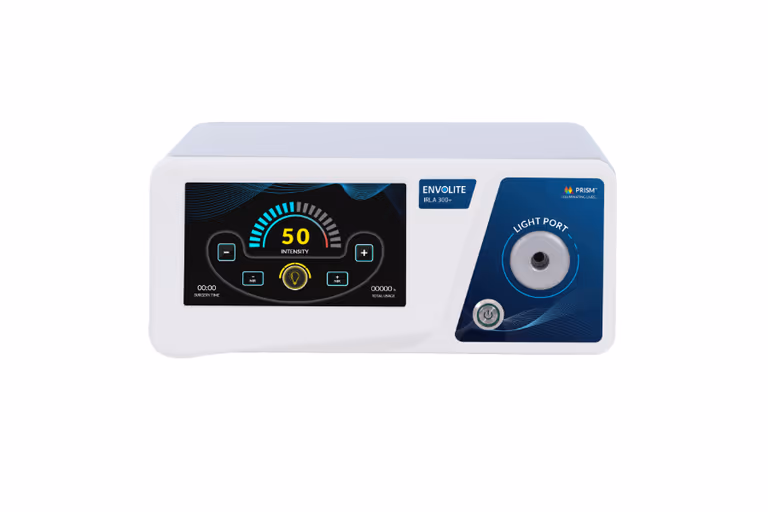

IRLA
ICG fluorescence imaging with dual-mode output from one port.
- Display7" capacitive touchscreen
- Primary capabilityICG fluorescence imaging
- White light output2200 lm
- SpectraSureOptional
- ICG fluorescenceIncluded
- NIR output power10 W
Accessories
View all accessories

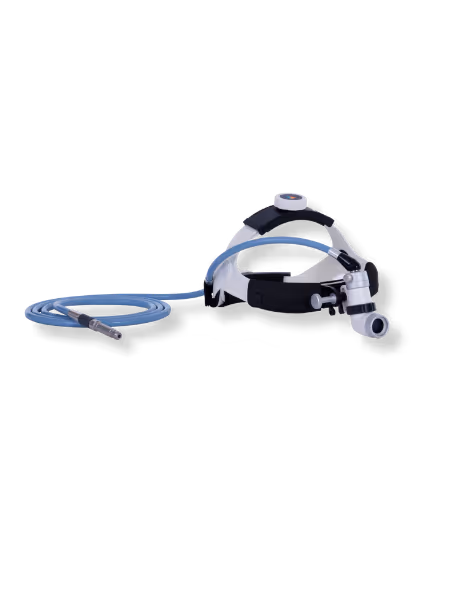

Surgical Fiber Headlight
Focused, high-intensity shadow-free illumination designed for precision and ergonomic comfort during extended procedures.

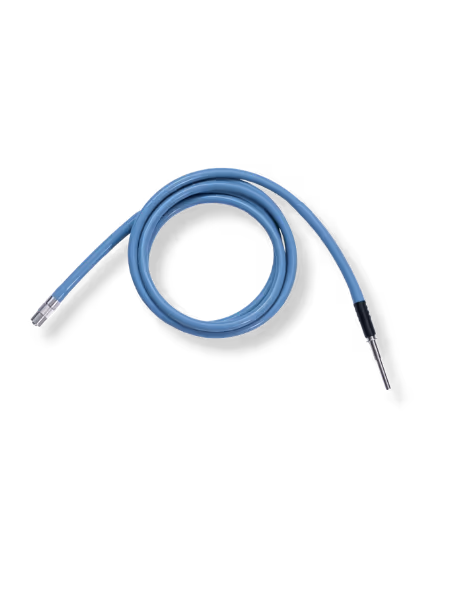

Fiber Optic Cable
High-intensity medical fiber optic cable delivering uniform illumination and exceptional flexibility for surgical excellence.

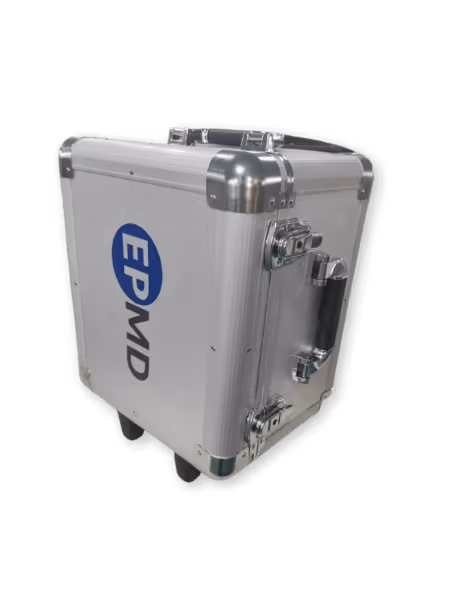

Light Source Carry Case
Premium impact-resistant transport solution designed to protect your medical LED light source during travel and storage.
Specifications
| Parameter | SCLA | TCLA | IRLA | IRLB | IRLC |
|---|---|---|---|---|---|
| Primary capability | White light imaging | White light imaging + SpectraSure™ | ICG fluorescence imaging | Multispectral imaging | Advanced multispectral imaging |
| OptiCore-MX platform | ✓ | ✓ | ✓ | ✓ | ✓ |
| SpectraSure imaging suite | - | ✓ | Optional | Optional | Optional |
| White light output | 2800 lm | 2800 lm | 2200 lm | 1800 lm | 1600 lm |
| White light CCT | 5700-6500 K | 5700-6500 K | 6500 K | 6500 K | 6500 K |
| ICG fluorescence imaging | - | - | ✓ | - | - |
| ICG excitation wavelength | - | - | 780-805 nm | - | - |
| Multispectral imaging | - | - | - | ✓ | ✓ |
| Spectral channels | - | - | 2 | 3 | 4 |
| NIR output power | - | - | 10 W | 24 W | 36 W |
| Programmable spectral sequencing | - | - | - | ✓ | ✓ |
| External synchronisation support | - | - | - | Optional | Optional |
| Spectral stabilisation | - | - | - | - | ✓ |
Frequently asked questions
- Which Envolite configuration do I need for ICG fluorescence?
Specify IRLA for ICG fluorescence imaging with 780-805 nm NIR excitation and dual-mode white plus IR output from a single port. SpectraSure is available as an optional add-on.
Source: Envolite June 2026 brochure- What areas of application can Envolite support?
Envolite is designed for a broad range of surgical and medical imaging applications, including surgical endoscopy, flexible endoscopy, surgical microscopy, minimally invasive surgery, fluorescence-guided imaging, and advanced multispectral imaging. Its configurable illumination architecture enables application-specific solutions across different imaging platforms and clinical workflows.
- How quiet and portable is Envolite?
Whisper-quiet operation below 45 dB with total weight under 4.8 kg, cable detection interlock, and 50,000 h LED service life across the platform family.
Source: Envolite product specifications
