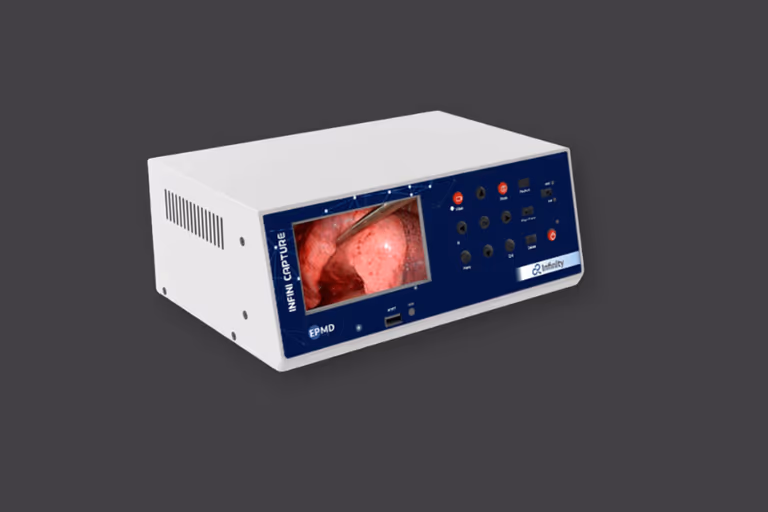

Capture A - FHD recorder with front display
Infini Capture A is a compact 1-input Full HD medical recorder with a built-in 4.3" TFT display, multi-format video I/O, foot pedal and IR control, microphone commentary, and USB 3.0 UVC PC capture mode.
OR Integration
Infini Capture
Medical video recording for surgical documentation and review, with optional cloud Sync.
Infini Capture is a compact medical video recorder family for surgical documentation, teaching, and case review within OR Infinity™.
Choose Capture A with a front display for multi-format FHD recording, B or 2B HDMI recorders for one or two inputs in FHD or 4K, and Capture Sync when programmes need secure cloud case management from the recorder USB port.
Capture A capabilities
What Infini Capture A delivers
Full HD recording
Record video to USB flash drive or hard disk at up to 1080p.
Multiple video inputs
Supports SDI, HDMI, DVI, VGA, YPbPr, and CVBS as video inputs.
Multiple video outputs
Supports SDI, HDMI, and CVBS as video outputs.
4.3" preview display
Monitor video and operate the recorder from the built-in 4.3-inch TFT display.
Audio input
Record medical commentary with surgical video via microphone input.
Foot pedal control
Connect foot pedals for hands-free video recording and image snapshot.
Video playback
Play back recorded video to review the surgical procedure directly on the unit.
USB 3.0 PC capture
Connect to a PC to work as a USB 3.0 UVC HD video capture card.
External storage copy
Connect a PC to copy recorded surgical video files from the hard disk.
Remote control
IR remote control is available for seamless recorder operation.
Family range
Recorders and cloud Sync across one Capture family
Specify the recorder form that matches input count and resolution, then add Capture Sync when programmes need secure cloud case libraries without replacing the existing recorder.
Capture A
1-input FHD medical recorder with 4.3" front display, multi-format I/O, and foot pedal control.
Capture B (FHD / 4K)
1-input FHD or 4K recorder on Intel Core Ultra 5 with HDMI interface.
Capture 2B (FHD / 4K)
2-input FHD or 4K recorder on Intel Core Ultra 7 with HDMI interface.
Capture Sync
USB cloud connectivity module for automated upload, case tagging, editing, and sharing.
Capture Sync
Intelligent cloud connectivity for surgical content
Capture Sync enhances existing surgical recording systems by connecting to the recorder USB storage port and securely moving cases into a structured cloud library.
Universal compatibility
Connects to any existing surgical recorder via its USB storage port without replacing current systems.
Automated cloud upload
Receives recorded videos and images from the recorder and securely uploads them to the cloud.
Structured case management
Tag patient, surgeon, and procedure details to build an organised, searchable case library.
Built-in video editing tools
Trim, annotate, and mark cases for efficient documentation and teaching.
Secure sharing and collaboration
Controlled sharing with clinicians, students, or researchers for teaching, analysis, and review.
Dedicated user accounts
Private, role-based access for doctors and hospital administrators.
End-to-end data protection
Multi-layer encryption with HIPAA and GDPR aligned healthcare standards.
Cloud-based convenience
Eliminate manual file transfer and storage limits with anytime access to surgical content.
In detail
Capture B and 2B - HDMI recorders
Capture B is a 1-input recorder on Intel Core Ultra 5 with HDMI interface (FHD or 4K). Capture 2B adds a second input on Intel Core Ultra 7 (FHD or 4K). Full I/O tables will expand with dedicated brochures.
Capture Sync - cloud connectivity module
Infini Capture Sync attaches to a recorder’s USB storage port and securely uploads surgical video and images to the cloud for case tagging, editing, sharing, and role-based access - compatible with existing recorders regardless of brand.
Project-bundled Infini OneView
Capture recordings can feed Infini OneView for centralised media and procedure storage. Software is bundled by project need - see the Technology hub.
Configurations
View all configurations
Infini Capture A
1-input Full HD medical recorder with built-in 4.3" front display.
- Description1 Input Medical Recorder
- Inputs1
- Recording Resolution1080p
- Display4.3" TFT
Infini Capture B (FHD)
1-input Full HD recorder on Intel Core Ultra 5 with HDMI interface.
- Description1 Input Medical Recorder (FHD)
- Inputs1
- Recording Resolution1080p
- ProcessorIntel Core Ultra 5
- InterfaceHDMI
Infini Capture B (4K)
1-input 4K recorder on Intel Core Ultra 5 with HDMI interface.
- Description1 Input Medical Recorder (4K)
- Inputs1
- Recording Resolution4K
- ProcessorIntel Core Ultra 5
- InterfaceHDMI
Specifications
| Parameter | Infini Capture A |
|---|---|
| Description | 1 Input Medical Recorder |
| Video Format | MPEG-4 H.264 |
| Image Format | JPEG |
| Recording Resolution | 1080p |
| Storage External | USB Flash Drive, USB Hard Drive, 2.5 inch Hard Drive (FAT, FAT32, NTFS; not exFAT) |
| Storage Internal | 1 TB Hard Drive |
| Control | Push Buttons, IR Remote Control |
| Recording Time (1TB HD) | 150 h (High 16 Mbps) / 230 h (Medium 10 Mbps) / 550 h (Low 5 Mbps) |
| Video Input | HDMI, SDI (BNC), DVI, VGA, CVBS (BNC), YPbPr (BNC) |
| Video Output | HDMI, SDI (BNC), CVBS (BNC) |
| Audio Input | HDMI, SDI, Line In (3.5mm), MIC (3.5mm) |
| Audio Output | HDMI, SDI (BNC), Line Out (3.5mm) |
| Other Interfaces | Video/Photo Foot Pedal, IR Receiver, READ HDD (Mini USB), PC (USB 3.0), RS232, DC Power |
| Display | 4.3" TFT |
| Power Supply | DC 12V 3A |
| Dimensions | 262 × 172 × 120 mm |
| Weight | 1.6 kg |
Frequently asked questions
- How do Capture A, B, and 2B differ?
Capture A is a 1-input Full HD medical recorder with a 4.3" front display and multi-format I/O. Capture B is a 1-input FHD or 4K recorder on Intel Core Ultra 5 with HDMI. Capture 2B is a 2-input FHD or 4K recorder on Intel Core Ultra 7 with HDMI.
Source: Infini Capture product overview- What is Infini Capture Sync?
Capture Sync is a cloud connectivity module that attaches to a surgical recorder’s USB storage port, uploads video and images securely, and supports case tagging, editing, sharing, and role-based access. It is not a frame-synchronisation device.
Source: Infini Capture Sync brochure- Which Infini software does Capture support?
Infini OneView for centralised media and procedure storage, bundled by project need.
Source: OR Infinity software bundling- Can Capture A act as a PC capture device?
Yes - USB 3.0 UVC HD video capture card mode when Capture A is connected to a PC.
Source: Infini Capture A key features- Are Infini Canvas monitors listed as Capture accessories?
Not on this product page. Specify Canvas monitors separately when the programme needs local clinical or surgical displays.
Source: Infini Capture accessory guidance
